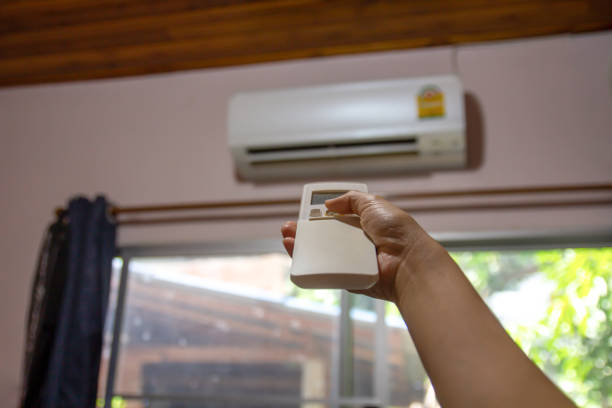

The Midwall range of air conditioners are predominantly used in small offices and residential properties.
The units range from 9 000btu to 36 000btu which would serve an area up to 72m²
The unit consists of an indoor unit and an outdoor unit. The units are connected by copper piping and communication cables
The indoor unit is installed on the wall of the area it serves. Also known as a high wall air conditioner

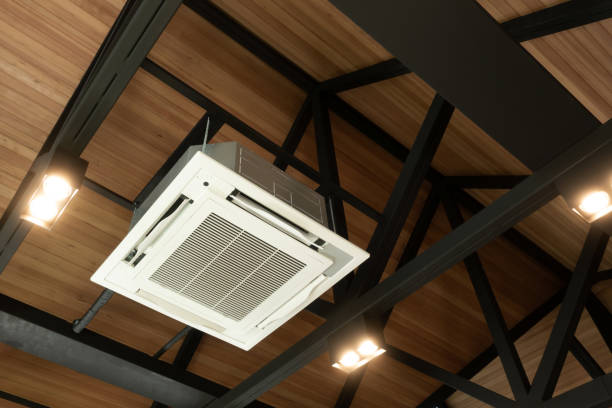

Ceiling Cassette
The ceiling cassette rage of air conditioners are predominantly used in an office environment
The units range from 12 000btu to 60 000btu and can serve an area of up to 120m²
The unit consists of an indoor unit and an outdoor unit. The units are connected by copper piping and communication cables
The indoor unit is installed in the ceiling void with the cover sitting flush with the ceiling

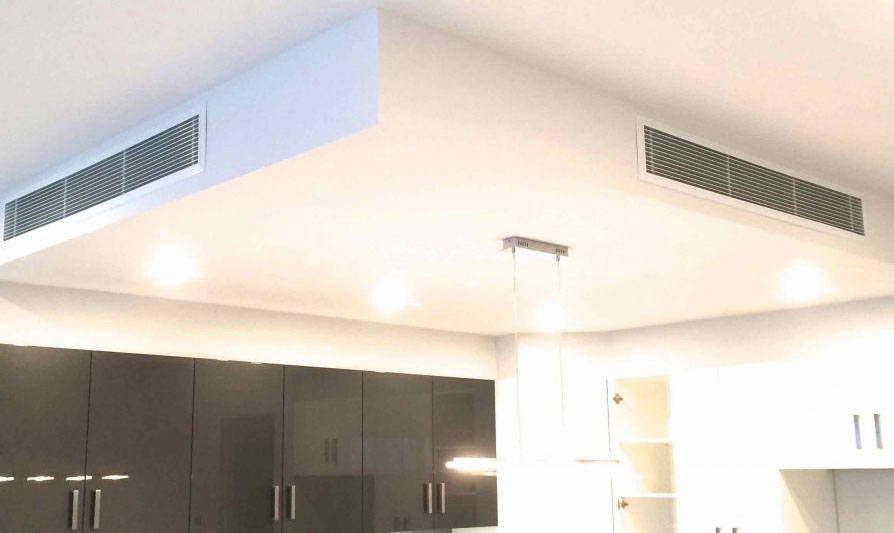

Ducted Split
The ducted range of air conditioners are predominantly used in large office areas or common areas
The units range from 12 000btu to 200 000btu
The unit consists of an indoor unit and an outdoor unit. The units are connected by copper piping and communication cables
The indoor unit is completely hidden within the ceiling void. The conditioned air is supplied to various areas by means of a ducted system and diffusers/grilles

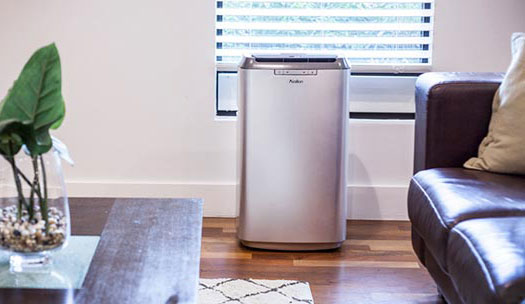

Portable unit
The portable range is ideal for small areas where no other options are available or as a temporary solution
The units range from 9 000btu to 12 000btu and can serve an area of up to 24m²
The indoor unit includes the compressor which makes it slightly noisier than the conventional midwall air conditioner. The unit also has flexible duct that needs to be installed in a way to expel the hot air to another area/outside

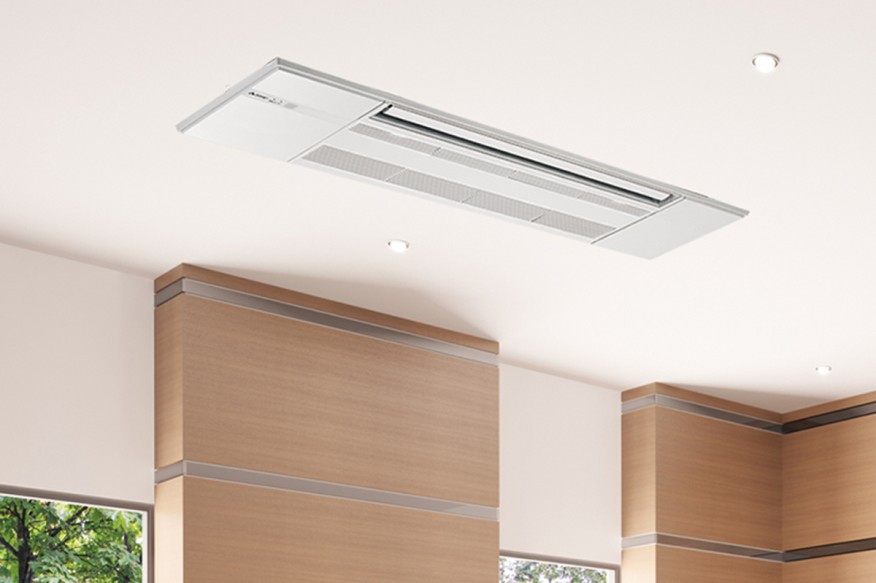

Under ceiling / Floor mount
The ceiling cassette rage of air conditioners are predominantly used in large office environments or conference centres
The units range from 12 000btu to 60 000btu which would serve an area up to 120m²
The unit consists of an indoor unit and an outdoor unit. The units are connected by copper piping and communication cables
The indoor unit is installed on the wall of the area it is to serve. The under-ceiling unit can be used in areas where there is no ceiling void to install a ceiling cassette or ducted unit

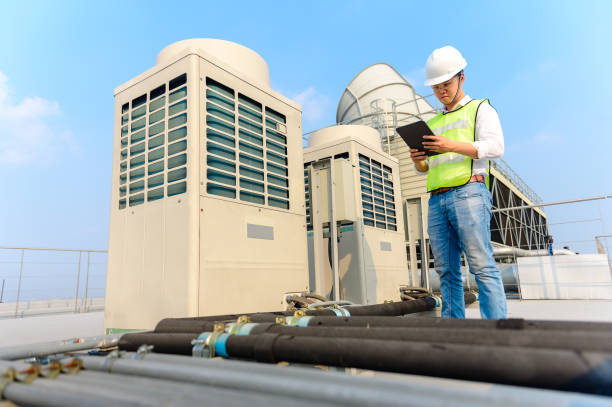

VRV System
VRV systems are predominantly used in large office blocks, large houses or commercial installations
The systems are built to suit almost any application. Each system consists of multiple indoor units connected to a single outdoor unit by copper piping and communication cables
The indoor units can range from midwall, ceiling cassette, under ceiling, ducted and floor standing units all of various capacities
The beauty of this system is that there are fewer outdoor units which results in a smaller footprint

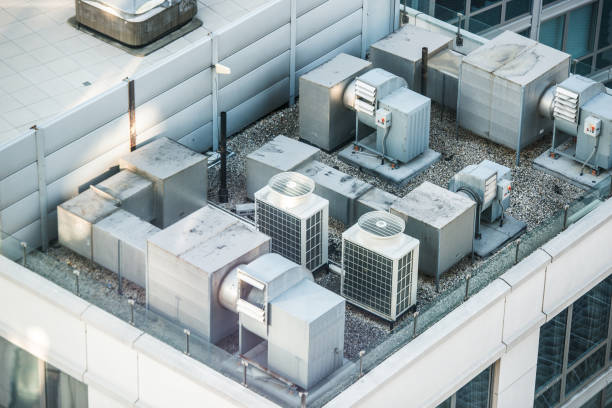

Rooftop Package unit
The Rooftop package range of air conditioners are predominantly used in large shopping centres or warehouses
This is a self-contained unit which is usually installed on a roof and supplies cool/warm air to the required area via ducting and diffusers/grilles

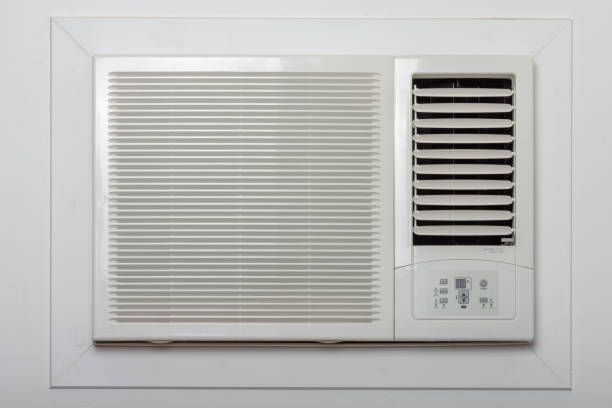

Window/wall unit
The Window/wall range of air conditioners are predominantly used in small offices
The units range from 9 000btu to 18 000btu which would serve an area up to 36m²
This is a self-contained unit which makes it slightly noisier than the ‘split’ type of air conditioners and is installed through a wall or window
This range of air conditioner is rarely used, usually where the landlord does not want unsightly outdoor units scattered all over the building
Air Curtain
An Air curtain is predominantly used in shopping centres
The unit is installed above the entrance door and blows a jet stream of air vertically. This assists in keeping the cool are in the store and the warm outside air from entering the store
